Trek 2020 Fuel EX 9.9

Trek 2020 Fuel EX 9.9

12th Oct 2019

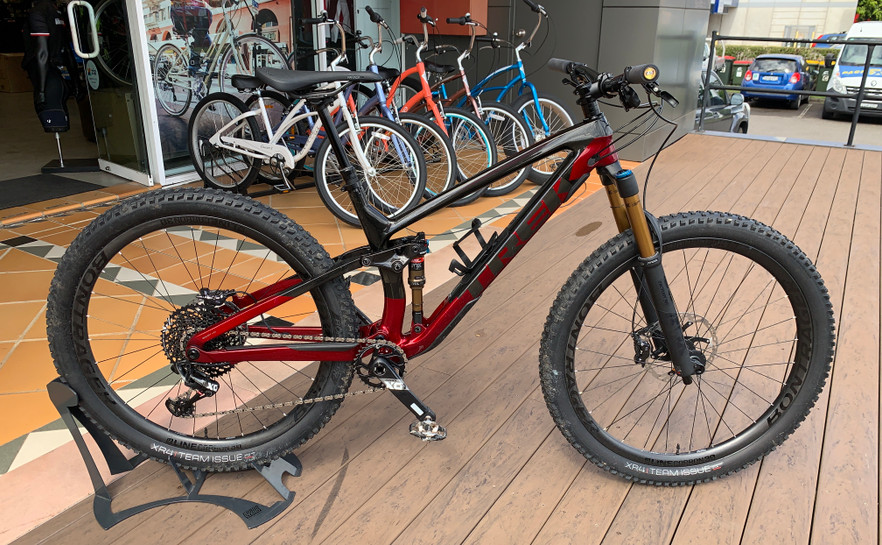

Check out the new “No Compromise” Trek Fuel EX 9.9. Carbon frame, carbon wheels, SRAM’s X01 Eagle 1x2 drivetrain and Fox Factory suspension make this the one carbon full suspension mountain bike that rules every trail. Excuse the dirt, this one has already been out for a ride! It's fast on singletrack, light on climbs and stable through the rowdiest terrain you can find.

Colour/Raw Carbon/Rage Red

It's right for you if...

You're a mountain biker through and through, and want a single carbon bike for the best performance on everything from marathon races to gnarly descents and technical trail. You know you'll be riding this bike on every trail, so you're not going to compromise on frame material, suspension or components.

The tech you get

A light and stiff full OCLV Mountain Carbon frame, 140 mm FOX Factory 36 Float fork with GRIP2 damper, 130 mm of rear travel with a FOX Factory Float shock featuring Trek's exclusive RE:aktiv with Thru Shaft and a 1x12 SRAM X01 Eagle drive train. Plus, powerful Shimano XT 4-piston hydraulic disc brakes, Tubeless Ready Bontrager Line Carbon 30 wheels with a 54-tooth Rapid Drive rear hub for quick engagement, a Bontrager Line Elite dropper post and a Bontrager Line Pro OCLV Carbon handlebar. An internal storage compartment and Control Freak cable routing add to the bike's capability and sleek look.

The final word

If you can have just one mountain bike, this is it. Fuel EX 9.9 has the highest-end parts on the best OCLV Mountain Carbon frame we make. It's equally at home on fast singletrack, gnarly trail and laying down miles on your next multi-stage race.

Why you'll love it

  1. Fuel EX 9.9 is the single best choice for riders who want an all-mountain ripper that excels at everything from marathon races to burly technical terrain to singletrack
  2. RE:aktiv with Thru Shaft works faster than a normal shock, so it tracks the ground better and keeps you in control
  3. A sleek internal storage compartment gives you a versatile spot to stow tools and gear
  4. We expanded our size range to ensure a better fit for all riders. And, you get the fastest wheel that fits your frame: XS frames get 27.5˝ wheels, S frames get to choose between 27.5˝ or 29˝ and sizes M to XL get 29˝ wheels
  5. Make it yours: it's fully customisable through Project One

Will my bike have a curved top tube?

Smaller frames (XS and S) have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frames (M and up) have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.

Specifications

  • Frameset

    Frame

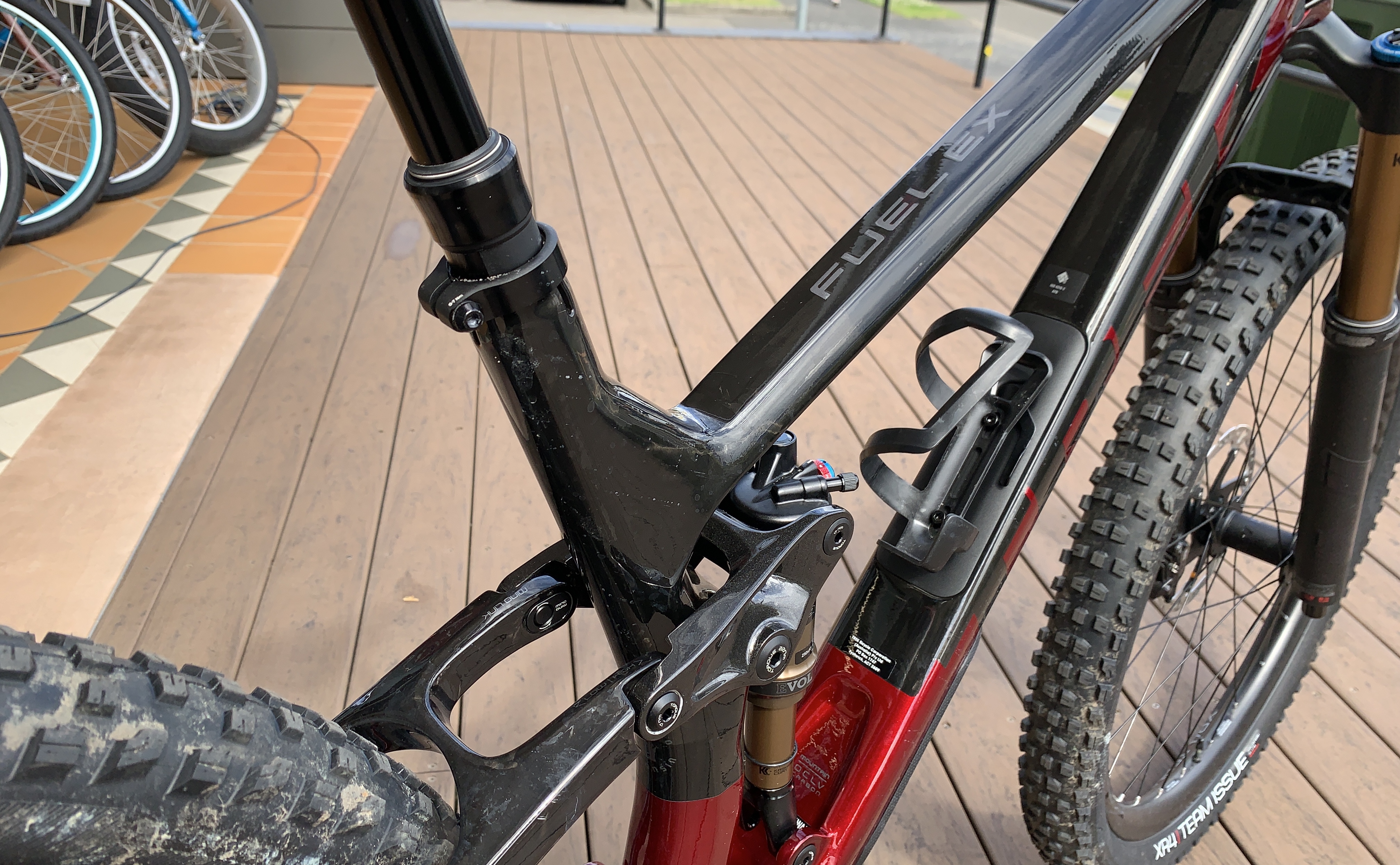

    OCLV Mountain Carbon main frame and stays, BITS internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel
    Fork

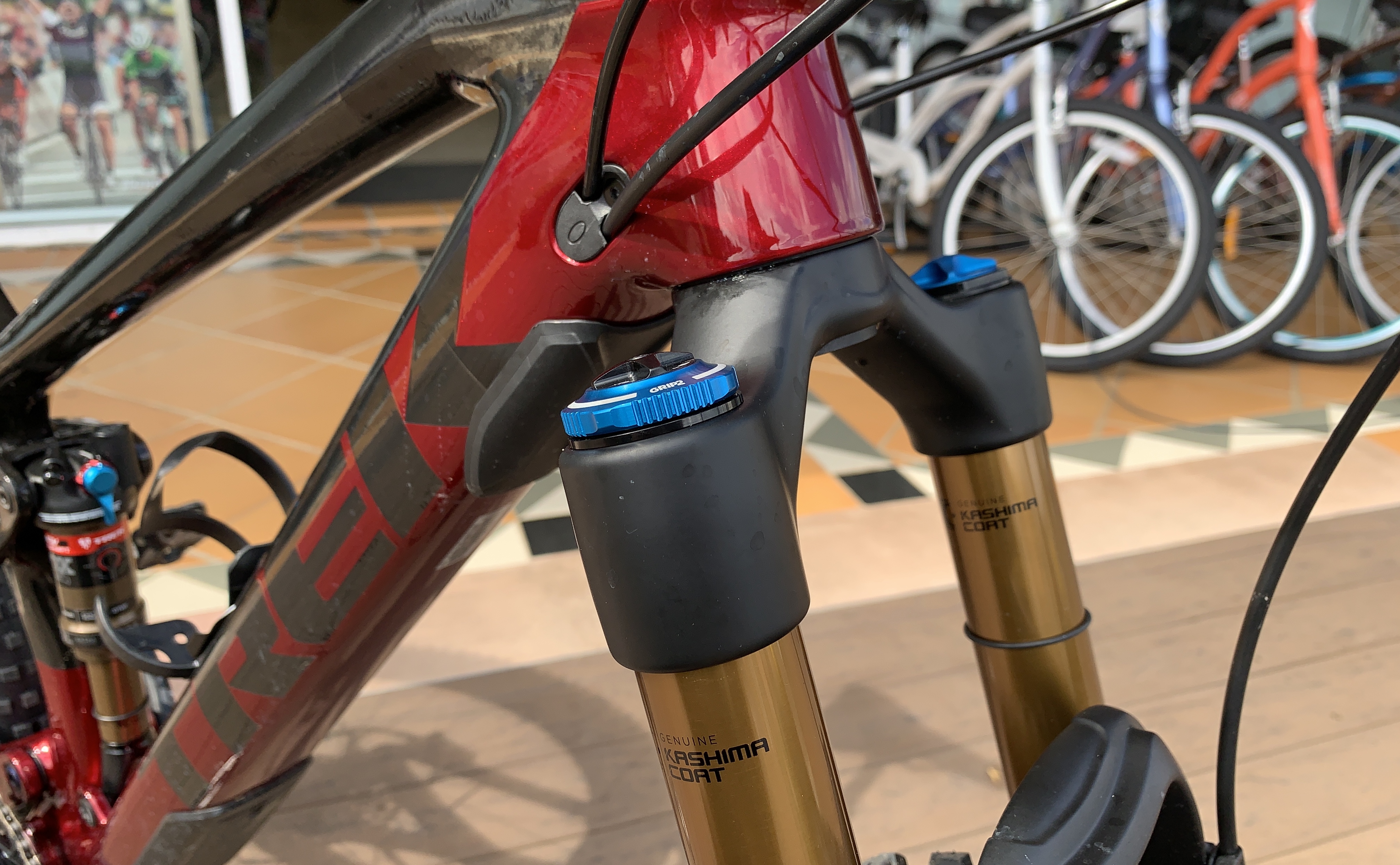

    Fox Factory 36, Float EVOL air spring, GRIP2 damper, tapered steerer, 44 mm offset, Kashima Coat, Boost110, 15 mm Kabolt axle, 140 mm travel
    Rear suspension
    Fox Factory Float EVOL, RE:aktiv with Thru Shaft 3-position damper, Kashima Coat, tuned by Trek Suspension Lab, 210x55 mm

  • Wheels

    Wheels

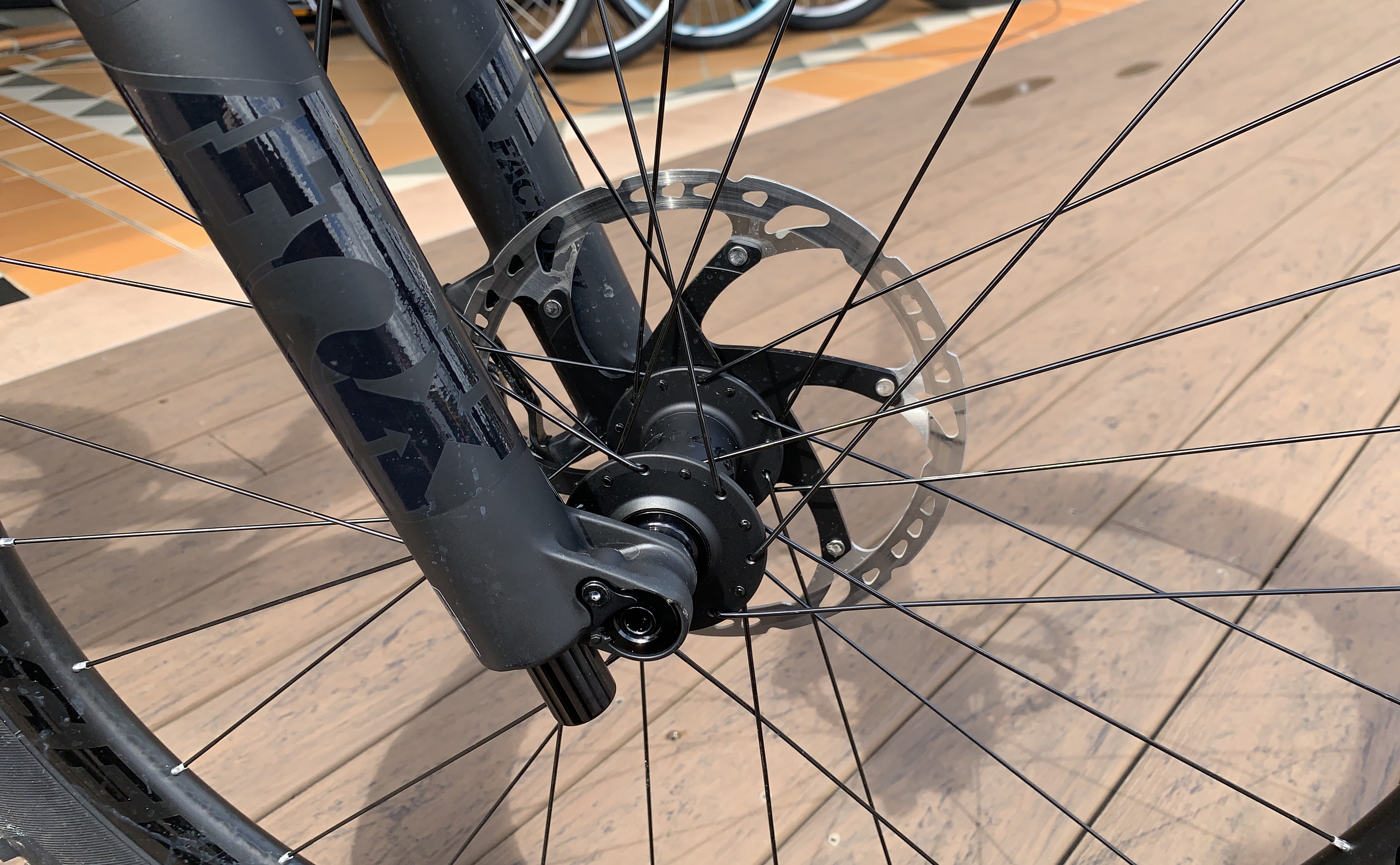

    Bontrager Line Carbon 30, Tubeless Ready, 6-bolt, Boost110 front, Boost148 rear
    Tyres
    Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60" (smaller sizes: 27.5x2.60")

  • Drivetrain

    Shifters
    SRAM X01 Eagle, 12-speed
    Rear derailleur
    SRAM X01 Eagle
    Crank

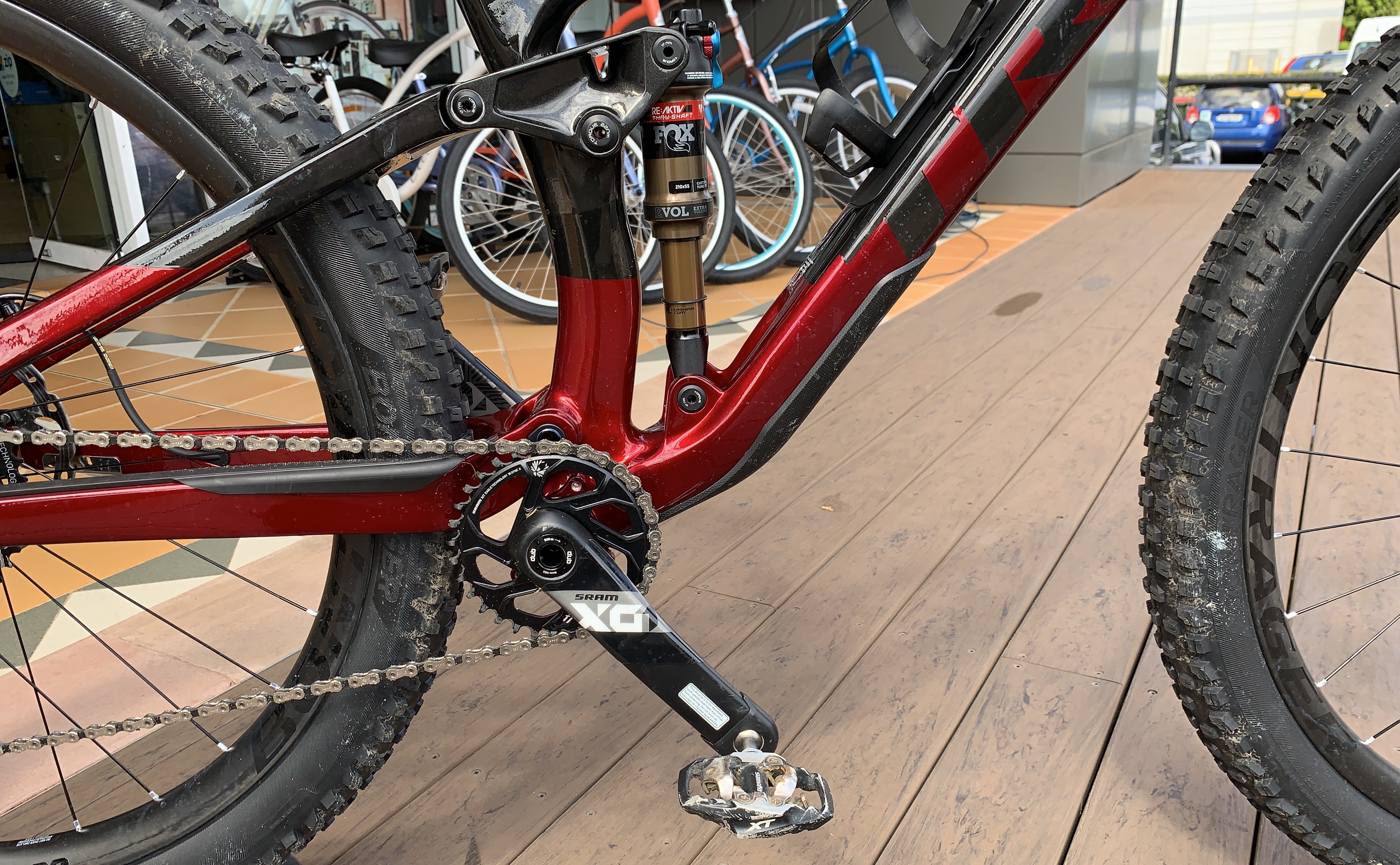

    SRAM X01 Eagle Carbon, DUB, 32T alloy ring, Boost
    Bottom bracket
    SRAM DUB, 92 mm, PressFit
    Cassette

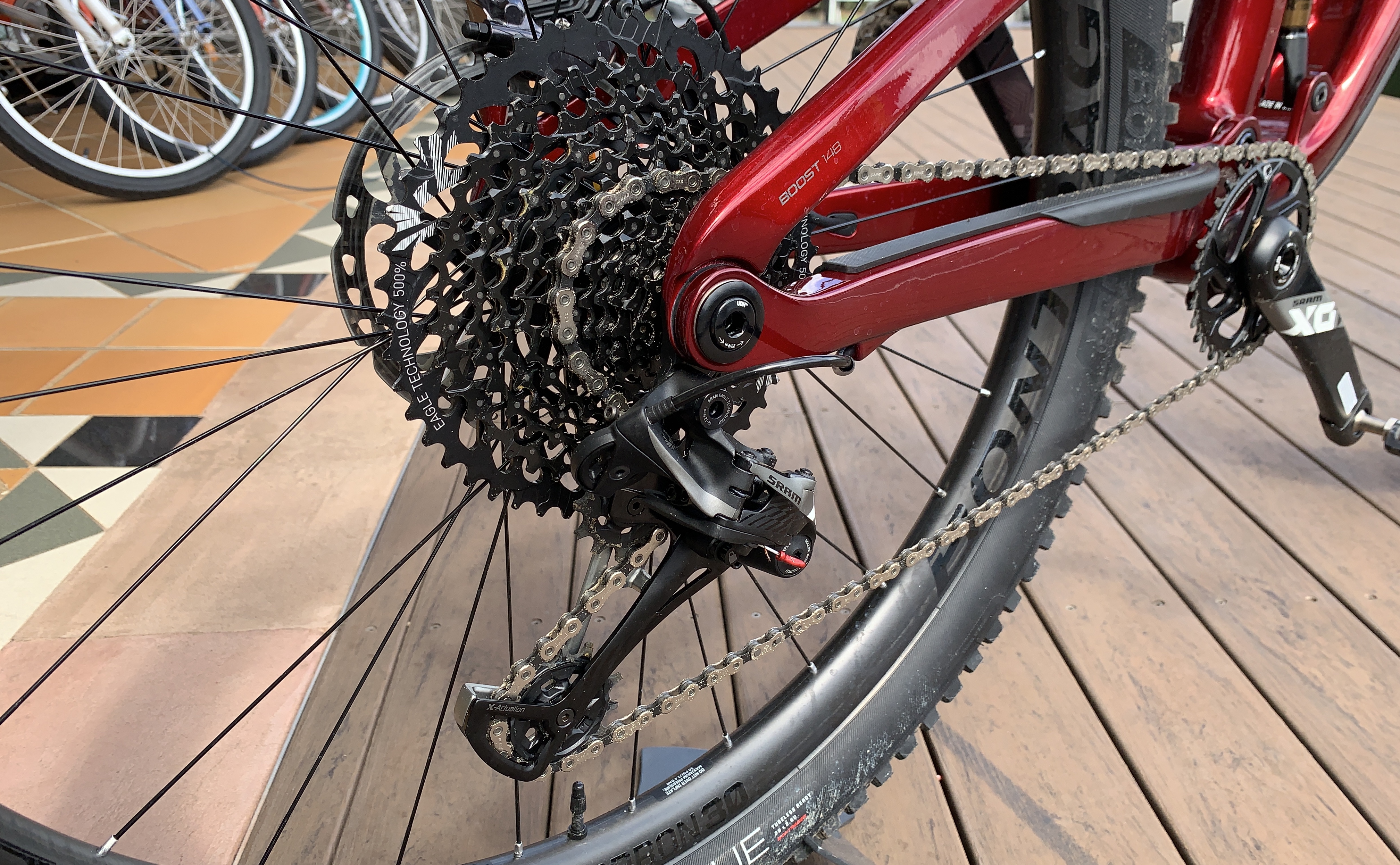

    SRAM XG-1275 Eagle, 10-50, 12-speed
    Chain
    SRAM GX Eagle, 12-speed

  • Components

    Saddle
    Bontrager Arvada Pro, carbon rails
    Seatpost
    Bontrager Line Elite Dropper, 170 mm travel, internal routing, 31.6 mm
    Handlebar
    Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise
    Grips
    Bontrager XR Trail Elite, alloy lock-on
    Stem

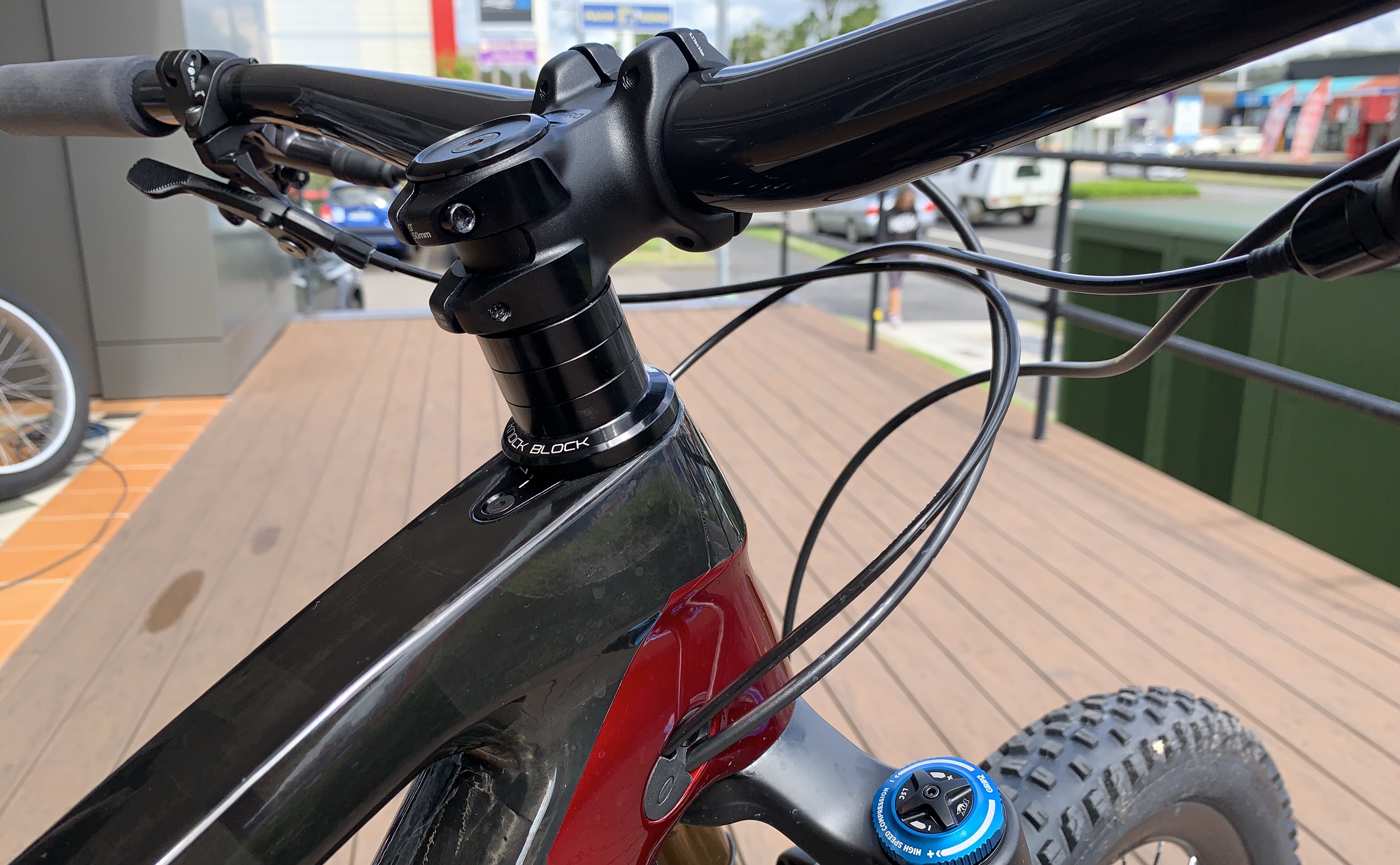

    Bontrager Line Pro, 35 mm, Knock Block, 0-degree
    Head set
    Knock Block Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
    Brake set

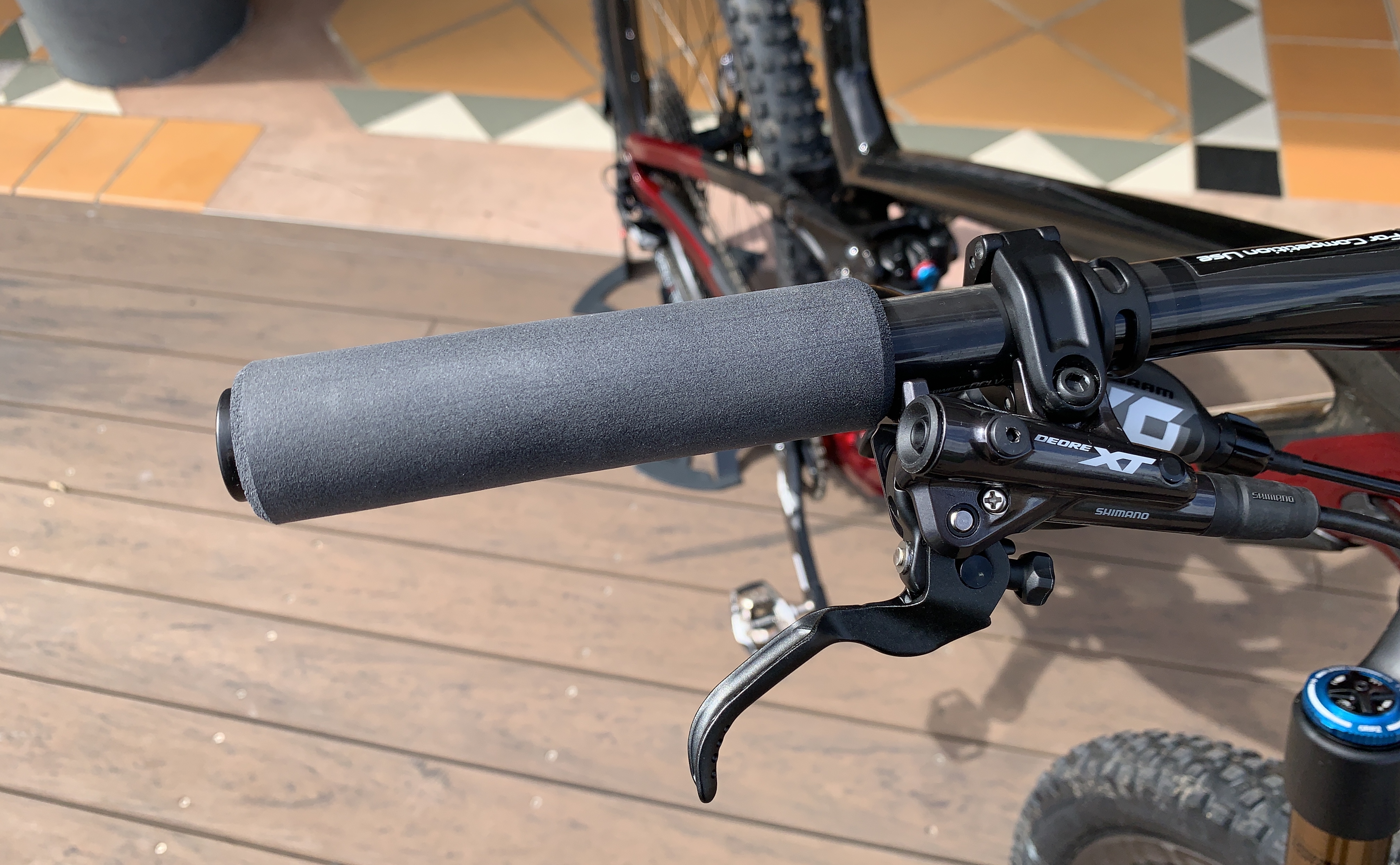

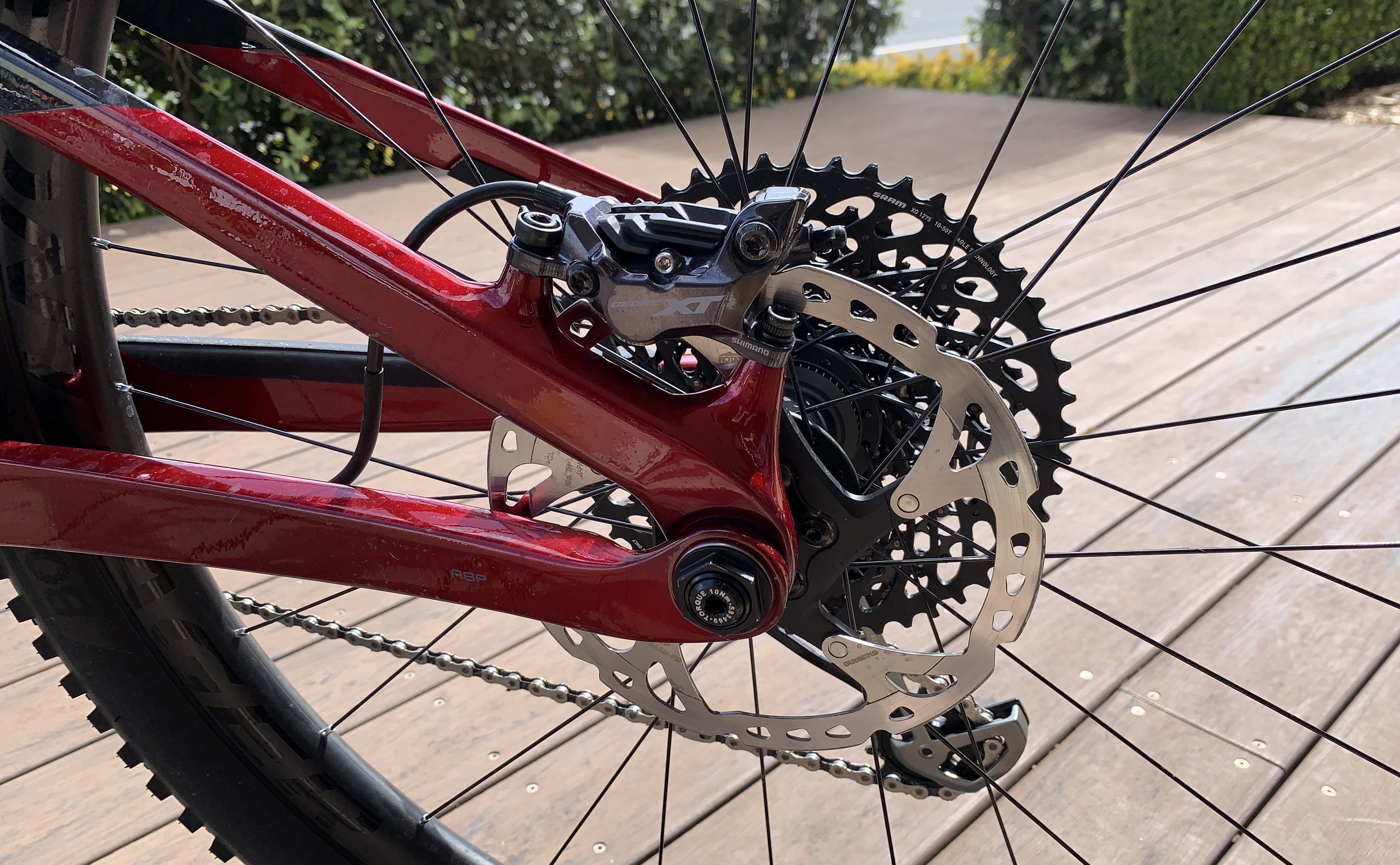

    Shimano XT M8120 4-piston hydraulic disc

  • Weight

    Weight
    M - 13.19 kg / 29.07 lbs (with tubes)
    Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
