Product Description
Please note. All bikes are pick up in store fully assembled or delivery price TBD, call us for delivery pricing 43652208
Thankyou for supporting your local bike shop :)

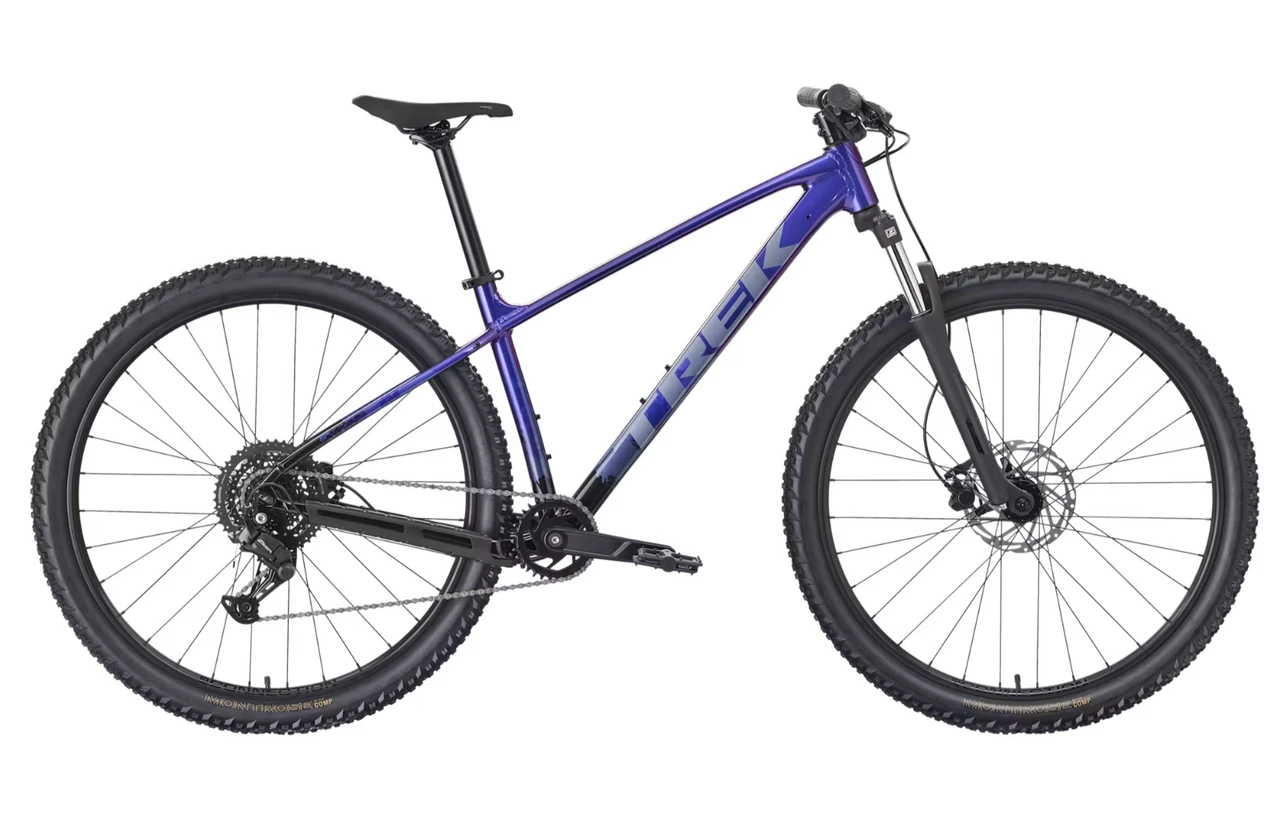

Marlin 4 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 8-speed Shimano ESSA shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
| Frame | Size: XXS , XS Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|---|---|
| Size: S , M , ML , L , XL , XXL Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|
| *Fork | Size: XXS SR Suntour XCM 30, coil spring, lockout, preload, 100 mm QR, 100 mm travel, 26" wheel |
| Size: XS SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel |
|
| Size: S SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel |
|
| Size: M , ML , L , XL , XXL SR Suntour XCE 28, coil spring, preload, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel |
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
|---|---|
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear | 173x5 mm QR |
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| *Tyre | Size: XXS Bontrager Montrose Comp, wire bead, 30 tpi, 26x2.35'' |
| Size: XS , S Bontrager Montrose comp, wire bead, 30 tpi, 27.5x2.40" |
|
| Size: M , ML , L , XL , XXL Bontrager Montrose comp, wire bead, 30 tpi, 29x2.40" |
| Shifter | Shimano M315, 8-speed |
|---|---|
| Rear derailleur | Shimano ESSA U2000 |
| *Crank | Size: XXS , XS ProWheel alloy, 32T narrow-wide steel ring, 160 mm length |
| Size: S , M , ML ProWheel alloy, 32T narrow-wide steel ring, 170 mm length |
|
| Size: L , XL , XXL ProWheel alloy, 32T narrow-wide steel ring, 175 mm length |
|
| Cassette | Shimano HG300, 11-45, 8-speed |
| Chain | KMC Z8.3, 8-speed |
| Pedal | nylon platform |
| Saddle | Bontrager Verse Short, stainless steel rails |
|---|---|
| *Seatpost | Size: XXS Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length |
| Size: XS , S , M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
|
| Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
|
| *Handlebar | Size: XXS , XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width |
| Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width |
|
| Size: M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
|
| Grips | Trek Line Comp, nylon lock-on |
| *Stem | Size: XXS , XS , S Bontrager Comp, 31.8 mm, 7-degree, 35 mm length |
| Size: M , ML , L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |
|
| Size: XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length |
|
| Size: XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length |
|
| Head set | Semi-integrated, 1-1/8'' |
| *Brake | Size: XXS , XS , S Tektro HD-M276 hydraulic disc |
| Size: M , ML , L , XL , XXL Tektro HD-M275 hydraulic disc |
|
| *Brake rotor | Size: XXS , XS , S , M , ML , L , XL , XXL Tektro, 6-bolt, 160mm |
| Size: M , ML , L , XL , XXL Tektro, 6-bolt, 180mm |
| Weight | M - 14.90 kg / 32.85 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
